SKYSHALO Dual Diaphragm Pump, Air-Powered, 1" Inlet/Outlet, Aluminum Body, 35 GPM, Max 120 PSI, for Industrial Applications, QBY4-25LF46-1inch-35

<div> <h3><strong>Product Description</strong></h3> <div>SKYSHALO Air-Operated Double Diaphragm Pump - Premium Quality Construction &amp; High Flow Rate</div> <div> <div>Experience the Exceptional Performance of SKYSHALO Air-Operated Double Diaphragm Pump</div> </div> </div> <div> <div> <div>Durable Construction</div> <div> <div>The SKYSHALO air-operated diaphragm pump is constructed with a sturdy aluminum alloy body, ensuring long-lasting durability. The solid bolted design provides excellent corrosion resistance. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 100 psi.</div> </div> </div> <div> <div>Reliable Performance</div> <div> <div>Featuring double PTFE diaphragms, the SKYSHALO self-priming pump offers exceptional resistance to corrosion and aging. With a maximum flow rate of 24 GPM and a maximum head lift of 229.6 ft/70 m±15%, it delivers reliable performance in various applications.</div> </div> </div> <div> <div>Efficient Design</div> <div> <div>Designed to meet international standards, the SKYSHALO diaphragm pump ensures professional air-operated performance. The 1-inch inlet/outlet port size and FNPT 1/2-inch air inlet size provide optimal efficiency. Experience hassle-free maintenance and repairs with easily accessible ball checks and fluid caps.</div> </div> </div> <div> <div>Optimum Air Efficiency</div> <div> <div>The SKYSHALO diaphragm pump is equipped with a sealed ball valve and a motor design that maximizes air efficiency. The "Unbalanced" air valve guarantees smooth operation without stalling. Maintain peak performance with ease.</div> </div> </div> </div> <div> <h3><strong>Specifications</strong></h3> <div>Model: QBY4-25L F46</div> <div>Type: Air-operated Double diaphragm</div> <div>Diaphragm Material: PTFE</div> <div>Body Material: Aluminum Alloy</div> <div>Inlet/Outlet Port: 1 inch (25 mm)</div> <div>Air Inlet Size: NPT 1/2 inch (12.7 mm)</div> <div>Max Flow Rate: 24 GPM</div> <div>Max Head: 229.6 ft/70 m±15%</div> <div>Valve Type: Ball</div> <div>Suction: 0-5 m (0-16.4 ft)</div> <div>Max Suspended Solids: 3 mm (1/8 inch)</div> <div>Average Air Consumption: 38 CFM</div> <div>Self-Priming Dry: 3 m (10 ft)</div> <div>Self-Priming Wet: 4.6 m (15 ft)</div> </div> <div> <h3><strong>Package Content</strong></h3> <div>1 x Air-Operated Double Diaphragm Pump</div> <div>1 x Product Manual</div> </div>

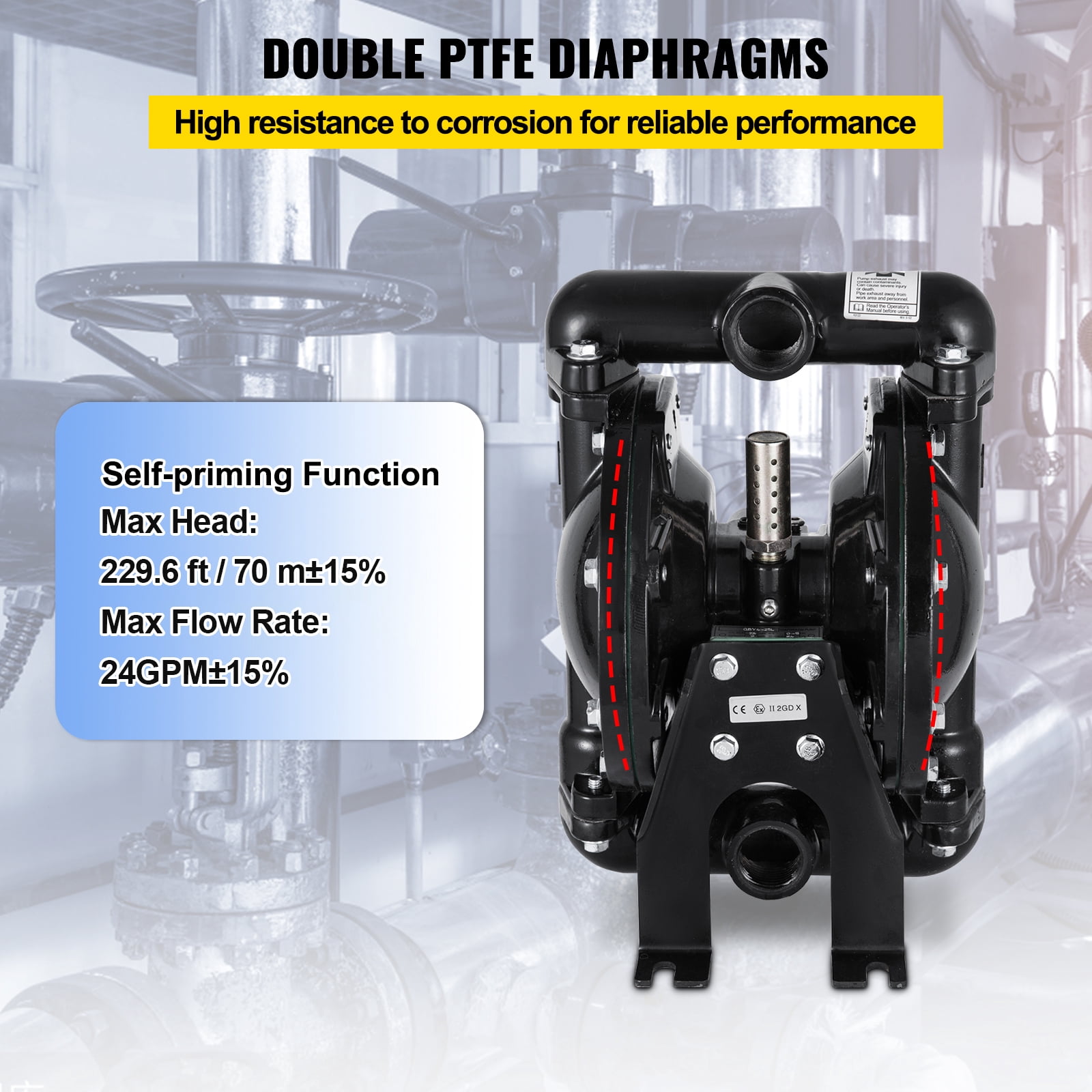

• SKYSHALO Double PTFE Diaphragms: Our air-operated double diaphragm pump utilizes premium PTFE diaphragms, ensuring durability, corrosion resistance, and long-lasting performance. With a maximum temperature of 150 ℉/66 ℃, maximum pressure of 100 psi, maximum flow rate of 24 GPM, and maximum head lift of 229.6 ft/70 m±15%.

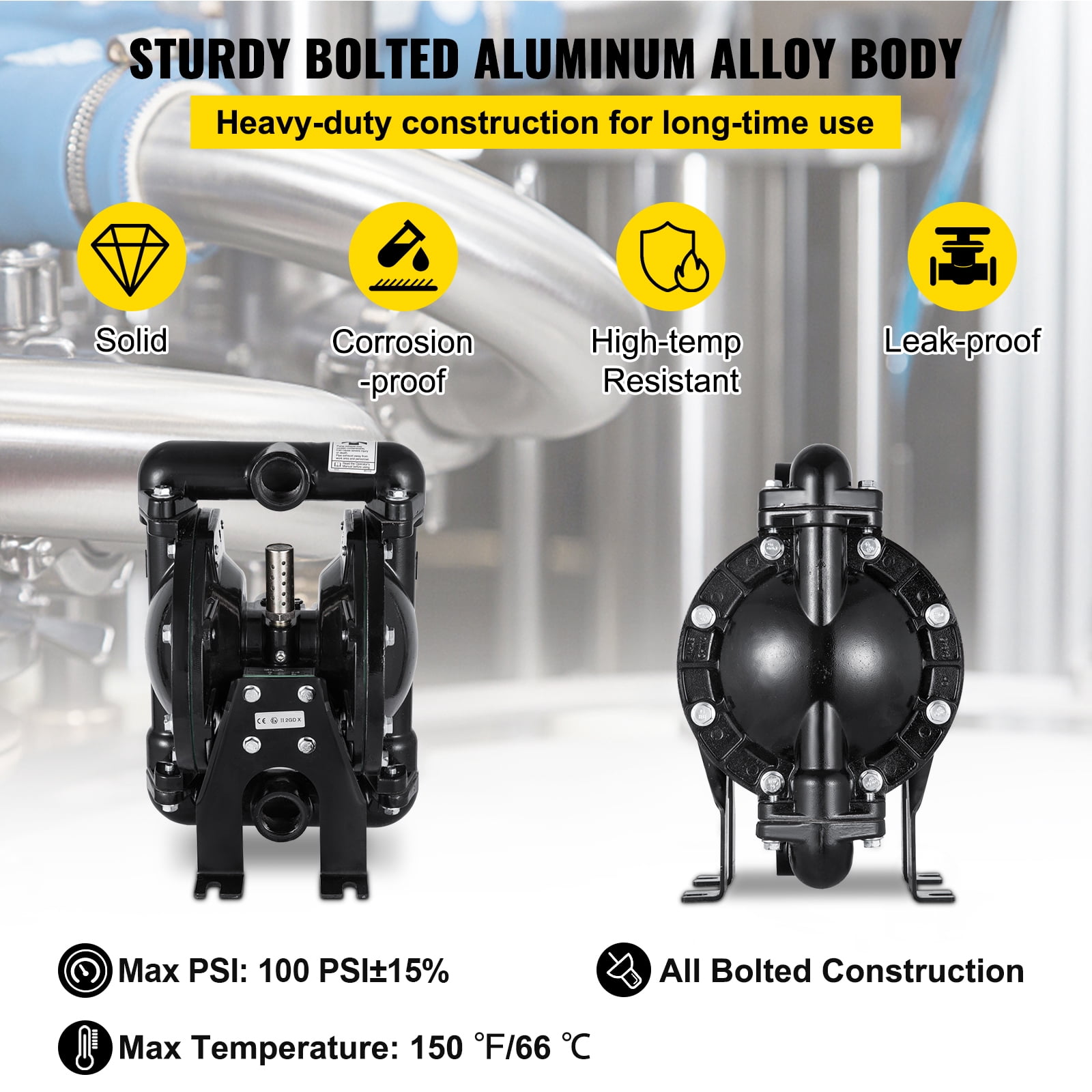

• Durable & Leak-proof Construction: Crafted with an aluminum alloy housing, our diaphragm pump is designed to resist leakage, providing a sturdy and corrosion-proof solution for long-term use.

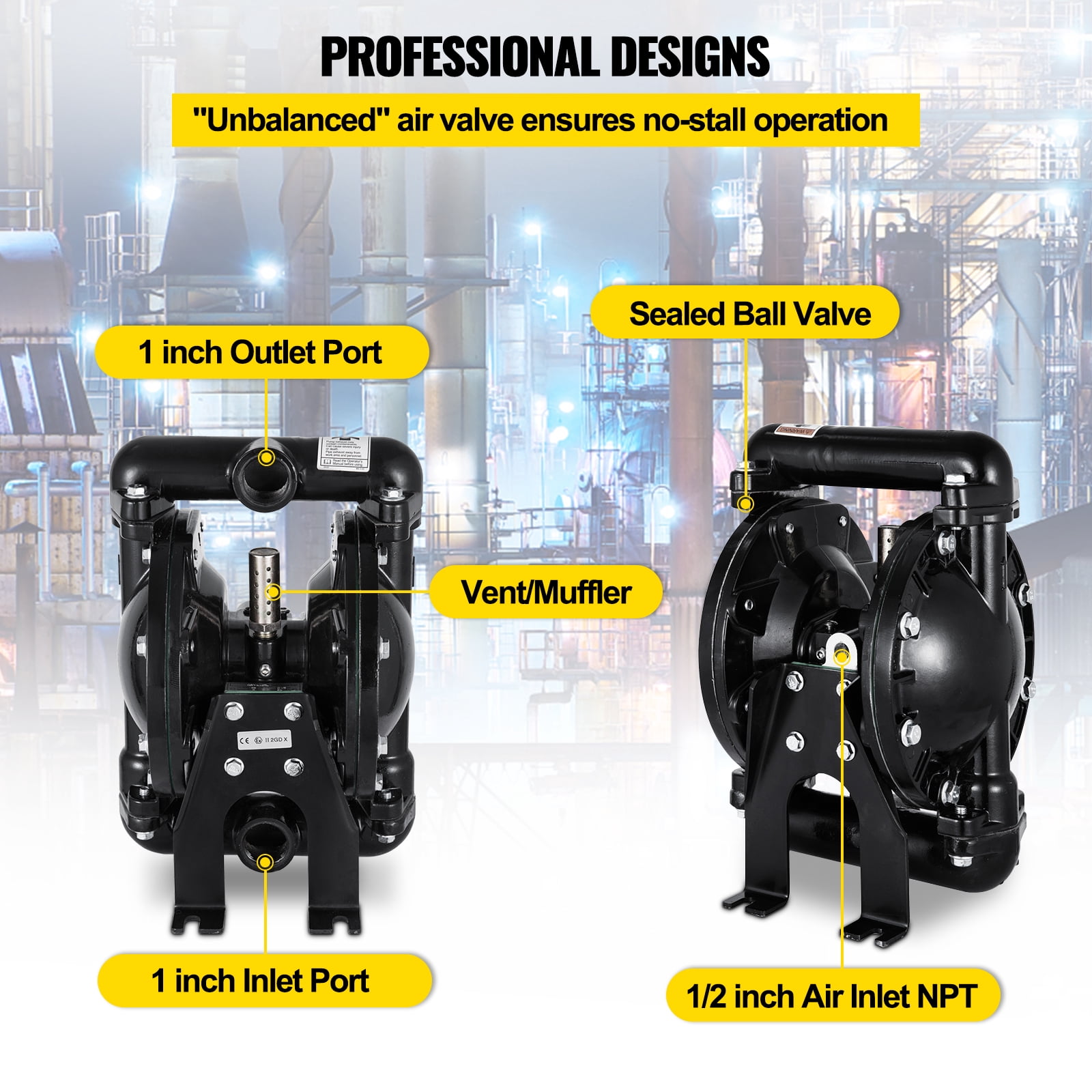

• Superior Air-operated Performance: Equipped with a 1-inch inlet/outlet port size and a FNPT 1/2-inch air inlet size, our pump features a high-quality glyd ring and double-acting sealing, enhancing air performance.
• Innovative & Professional Designs: Our double diaphragm pump boasts an externally available air distribution system and a stainless modular air valve. The low pulsation air valve ensures smooth and rapid changeover, improving efficiency and minimizing downtime.
• Versatile Applications: This diaphragm pump is capable of handling various fluids, including waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, and beverages. It finds wide applications in industries such as petroleum, metallurgy, mining, coating, printing, water treatment, and automobile.
